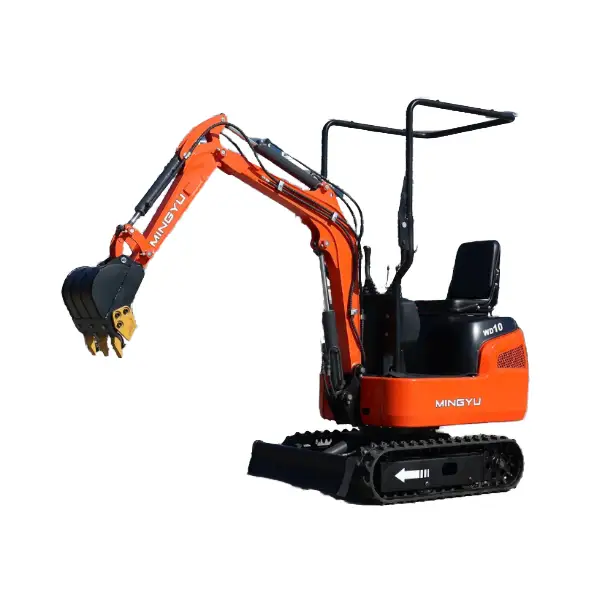

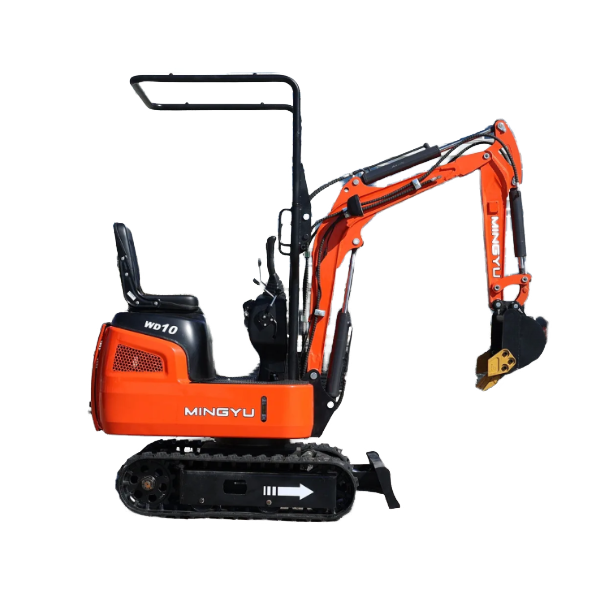

Used WD10 Micro Diesel Excavator - Ultra Compact Hydraulic Digger for Garden & Trenching
Designed for tight backyards, micro-trenching, greenhouse cultivation, and light residential landscaping, the Used WD10 Micro Diesel Compact Excavator offers an exceptional balance of ultra-compact agility and mechanical digging force. Featuring a slim 870 mm chassis width, this pre-owned micro digger easily passes through standard doorway gates and narrow alleys where conventional machinery cannot fit. Workshop-inspected, mechanically reconditioned, and load-tested, our pre-owned WD10 compact excavators allow landscaping contractors and rental fleets to access reliable micro-excavation power at a highly competitive investment cost.
Used WD10 Micro Diesel Excavator - Ultra Compact Hydraulic Digger for Garden & Trenching Specifications :
| Price | Contact us |
| Place of Origin | China |
| Min.Order Quantity | 1 |
| Payment Terms | OEM、ODM、OBM |
| Supply Ability | 1000 |
| Delivery Detail | one month |
Used WD10 Micro Diesel Excavator - Ultra Compact Hydraulic Digger for Garden & Trenching Detail Introduction :
| Parameter Category | Specification Item | Parameter Value |
| Gross Weight | Operating Weight | 800 kg |
| Bucket & Power | Rated Bucket Capacity | 0.025 m³ |
| Engine Model | KO19ZFC-1 | |
| Climbing Ability (Gradient) | 30° | |
| Main Valve Type | Mechanical | |
| Overall Dimensions | Overall Transport Length | 2715 mm |
| Overall Width / Upper Structure Width | 870 mm / 870 mm | |
| Overall Height | 2263 mm | |
| Min. Ground Clearance | 95 mm | |
| Tail Swing Radius | 816 mm | |
| Undercarriage Specs | Track Width | 180 mm |
| Track Gauge | 690 mm | |
| Track Contact Length / Total Length | 900 mm / 1220 mm | |
| Working Range | Max. Digging Height | 2346 mm |
| Max. Dump Height | 1698 mm | |
| Max. Digging Depth | 1770 mm | |
| Max. Digging Reach | 255 mm | |
| Min. Swing Radius / Height at Min. Swing | 1405 mm / 2095 mm |
Our pre-owned WD10 Micro Diesel Compact Excavator is powered by an efficient KO19ZFC-1 single-cylinder diesel engine (7 kW rated output) paired with a responsive mechanical main valve hydraulic system. Built with a narrow 180 mm track width and an overall length of 2715 mm, the machine provides stable traction across lawns, garden soil, and paved pathways. Despite its ultra-compact footprint, the WD10 delivers a maximum digging depth of 1770 mm and a maximum digging reach of 255 mm, making it ideal for laying utility pipes, digging planting holes, and excavating footings. Every used unit undergoes multi-point engine compression checks, hydraulic cylinder seal inspections, and boom stress testing prior to global export.
Unique Product Highlights
Ultra-Narrow Chassis (870 mm): Slim upper structure and track width allow effortless passage through standard garden gates, pedestrian doorways, and narrow side yards.
Dependable 7 kW Diesel Power: KO19ZFC-1 engine provides high low-end torque for smooth bucket breakouts and steady 30° gradeability.
Compact Tail Swing Radius (816 mm): Minimizes rear overhang collision risks when operating adjacent to building walls, fences, and trees.
Precise Mechanical Valve Controls: Simple, durable mechanical control linkage ensures low maintenance overhead and straightforward operation.
Versatile Working Range: Generates a 2346 mm max digging height and 1698 mm max dumping height for easy loading into light dump trailers and pickup trucks.
Product Applications
Residential Garden Landscaping: Digging tree planting pits, flowerbed edging, retaining wall foundations, and irrigation ditches.
Utility Micro-Trenching: Excavating narrow channels for fiber optic cables, water pipes, electrical conduits, and drain lines.
Greenhouse & Nursery Work: Tilling soil, digging fertilizer trenches, and moving compost bags inside covered farm structures.
Light Indoor Renovation: Breaking up thin concrete floor slabs and removing interior soil during home basement remodels.
Why Choose Used Equipment
Maximum Capital Efficiency: Acquire job-ready micro-excavation capabilities while saving significantly compared to brand-new machine retail pricing.
Low Operating Depreciation: Pre-owned micro excavators retain steady residual value and avoid steep first-year depreciation losses.
Rigorous Workshop Verification: Every used unit is thoroughly inspected, serviced, and load-tested for hydraulic integrity and engine performance.
Rapid Global Dispatch: Avoid long factory order wait times with ready-to-ship inventory available for immediate transport.
